Key Features
- 12 fully proportional channels.
- 50 Model Memory.

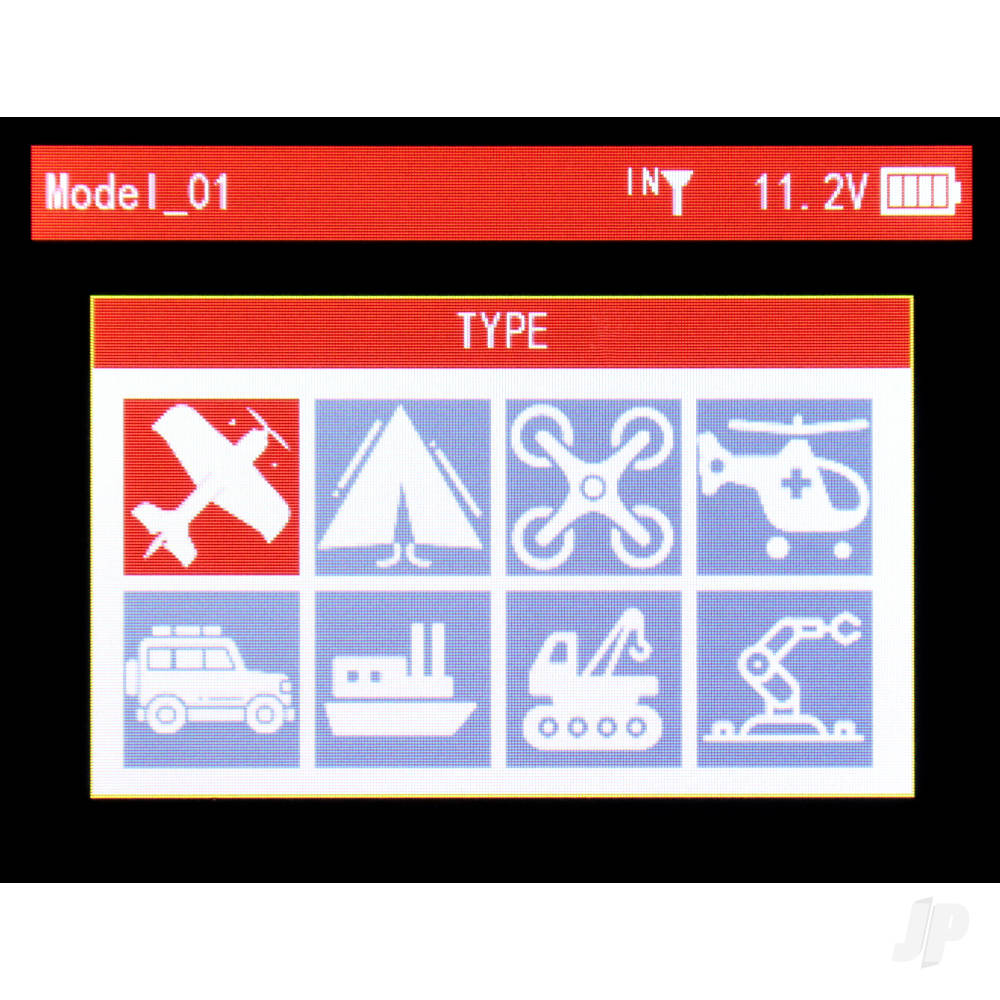

- Colour LCD.
- FHSS (Frequency Hopping Spread Spectrum) protocol.

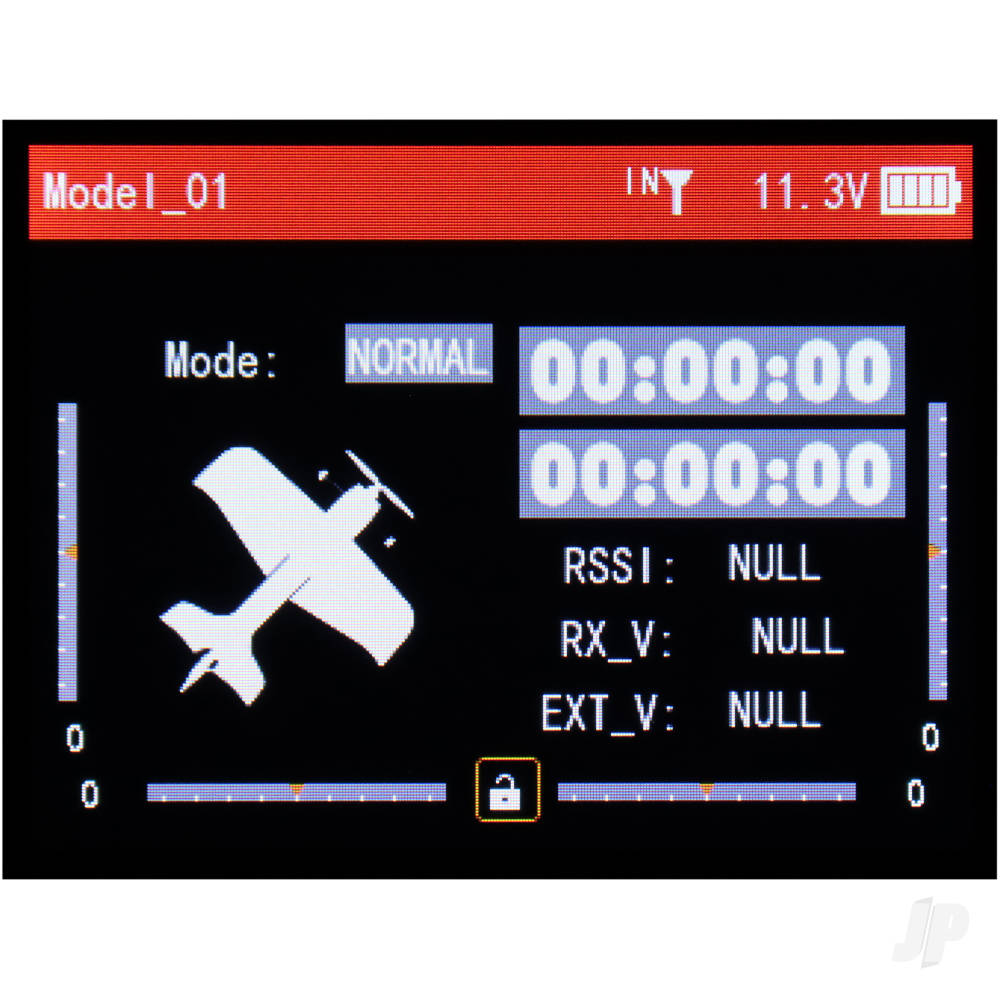

- Rx batt. & RSSI (Receiver Signal Strength Indicator) telemetry.
- Mode change capable (1/2).
- Wide (7.4 to 18V) voltage range input. (8x AA / 2-4S LiPo)
- Tx battery reverse polarity protection.
- Updatable firmware via micro USB port.
- 4096 bit resolution.
- Tx and Rx low battery voltage warning.
- Motor battery voltage warning (with optional PRM-01 sensor).
- Supports GPS telemetry.
- Waypoint mission capable.
- Long-range model compatibility.
- 1x two-position and 3x three-position switches.
- 2x proportional digital slider controls.

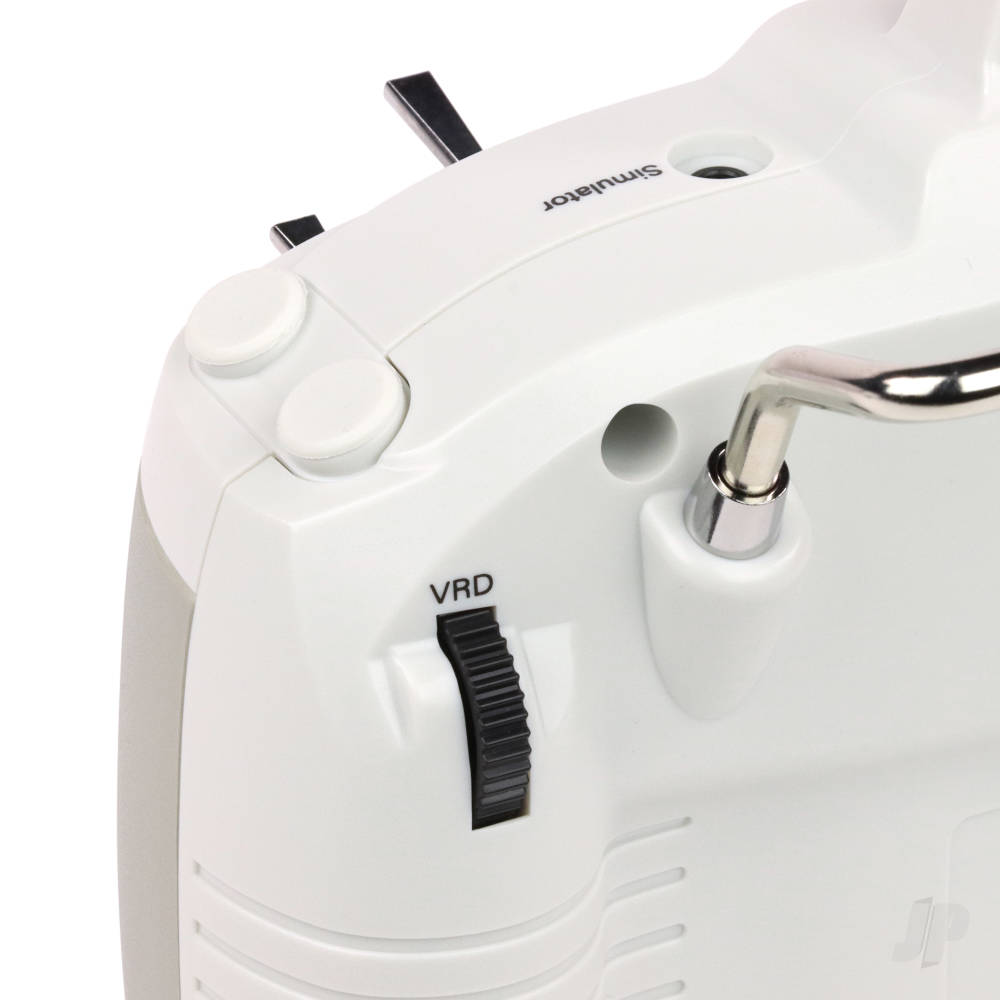

- 2x proportional rotary dials.
- Cable and wireless trainer compatibility.

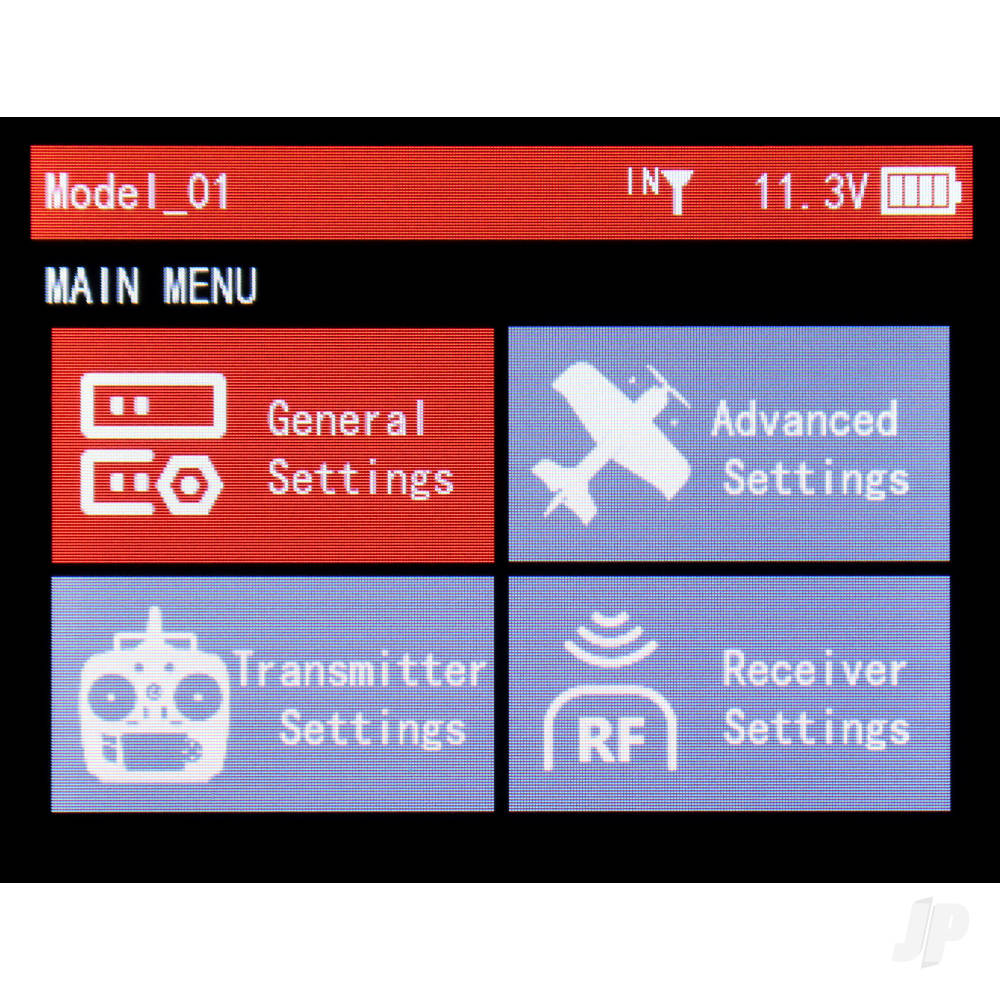

- Intuitive programming.

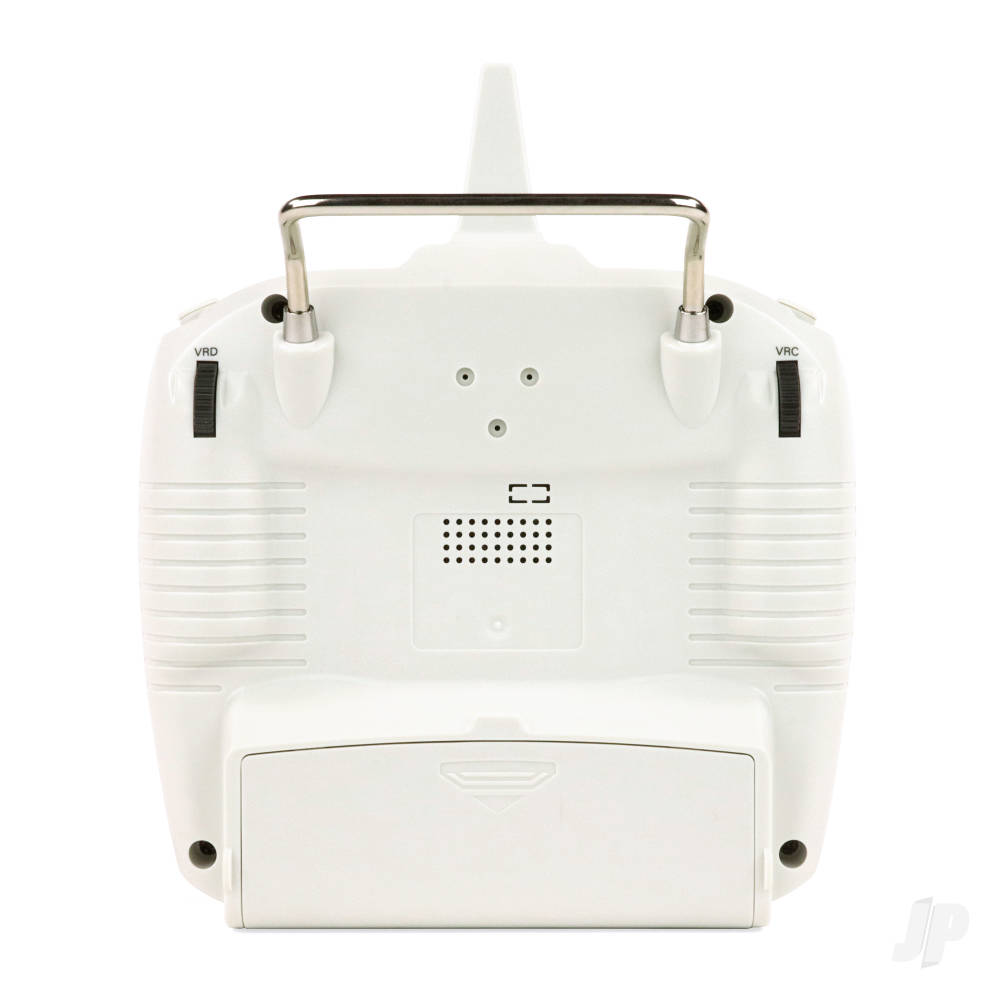

- Sturdy metal carry handle.
- Digital trims.
- Comfortable ergonomic design.
- S-Bus compatible.
- Vibration alarm.
What's in the Box

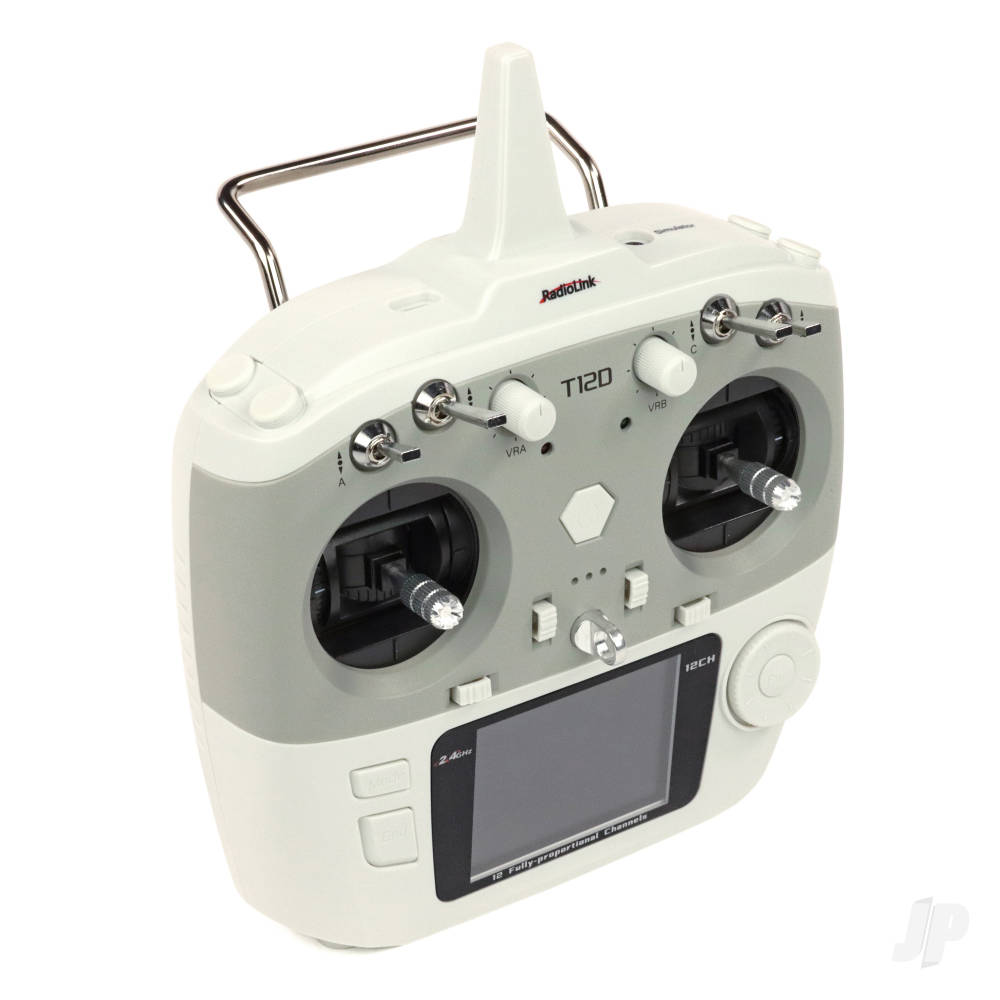

- 1x T12D 2.4GHz 12-channel transmitter.
- 1x R12F 12-channel S-Bus receiver.
- 1x Throttle stick spring retainer.
- 1x USB-C cable.
- 1x Instruction Manual.
Product Description
Now firmly established as an innovative, forward-thinking and dependable radio brand, RadioLink's 10+ years on the market has seen an exponentially growing core of very satisfied users. The new T12D is a radio system that you'll not only love for its features and flexibility but one you'll grow to adore for its comfort, ease of use and solid reliability. And we haven't even mentioned the price yet! With a range of transmitters covering everything from beginner to expert, standard features that'll raise an enlightened eyebrow and receiver prices that'll have you reaching for your wallet, RadioLink's expanding range is making many friends.
An embellished version of the popular AT9S, the T12D, 2.4GHz mid-range, telemetry capable transmitter has 12 fully proportional channels and, like its predecessor, has been designed with a furure-proof feature-set to suit everyone from traditional fixed-wing enthusiasts, to multirotor pilots, helicopter flyers, truck and track drivers and even bait boat fishermen.
Equipped with FHSS frequency-hopping spread spectrum protocol you can be assured of enhanced interference rejection and the peace of mind that comes with a rock-solid full range transmission rate. But it's better than that, if you're a regular club pilot a quick look at the specification will confirm that, actually, this is all the transmitter you'll ever need. Moreover, with amazingly competitive receiver pricing* you'll realise that you really can afford to conveniently grow, or even re-equip, your fleet. Take a look at the full feature list and make special note of its intuitive programming, colour LCD, telemetry features, wireless trainer link option and tidy good looks.
*Note: The T12D is compatible with the following RadioLink receivers: R16F, R12F, R8FGH, R8FG, R8EF, R8XM, R8FM, R8SM, R7FG, R6FG, R6F and R4FGM.
Comprehensive feature list:
Model categories catered for- Fixed wing power
- Glider
- Delta
- Helicopter
- Truck & track
- Bait boat
- Robot
Special functions- End point adjustment
- Sub trim
- Servo reverse
- Dual rate
- Exponential
- Throttle cut
- Fail-safe
- Simulator mode
- Twin timers
- Throttle activated timer
- Trainer function
- Servo monitor
- Trim step
- Idle down
- Pre-programmed mixers
- Programmable mixers
- Aileron Differential
- Air Brake
- V-Tail Mixing
- Elevon Mixing
- Throttle Curve
- Servo Speed
- Revolution Mix
- Butterfly
- Flight Conditions
Specification:
| Length (mm): | 175 |
| Height (mm): | 207 (inc. aerial) |
| Width (mm): | 107 (inc. carry handle) |
| Weight (g): | 536 |
Transmitter Technical Specifications
Weights & Dimensions
| Weight | 536g | 18.91oz |
|---|
| Shipping Weight | 0.94kg | 2.07lbs |
|---|
| Product Height | 207mm | 8.15in |
|---|
| Product Width | 107mm | 4.21in |
|---|
| Product Length | 175mm | 6.89in |
|---|
| Age Recommendation | 14+ | |
|---|
| Channels | 12 | |
|---|
| Model Memory | 50 | |
|---|
| Colour | White | |
|---|
