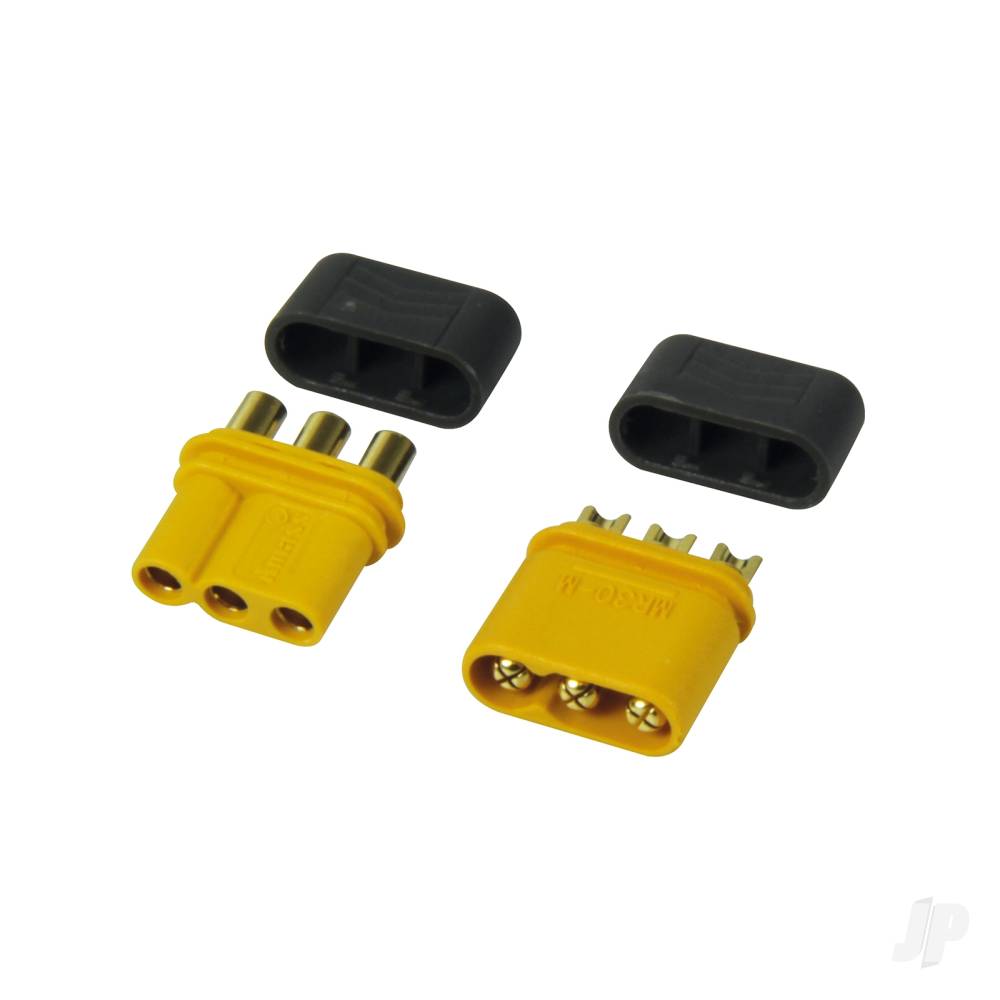

Multiplex MPX-MR30 (5 pairs)

Multiplex MPX-MR30 (5 pairs)

£12.99

The MPX MR30 Connector is designed for reliable connections in small brushless drives or wing/tail servos. Its asymmetric construction ensures protection against polarity reversal.


SKU: MPX1-02291
Brand: Multiplex
Release Date: Oct 20, 2024
Key Features
  • 3 pole
  • Contact diameter: 2mm
  • Dimension: Jack 14.4mm x 11.9mm x 4.9mm / Plug 15.4mm x 11.9mm x 4.9mm
  • Weight: Female 1.0 grams / Male 1.5 grams
  • Maximum voltage: 500V DC
  • Current carrying capacity: 15A short-term 30A
Product Description
#1-02291 MPX connector MR30 The MPX MR-30 plugs are constructed asymmetrically, which guarantees high protection against polarity reversal. They are suitable as a plug connection between controller and motor for small brushless drives or as a connector for wing/tail servos on the fuselage. The housing made of temperature-resistant polyamide is classified according to fire class UL94 V0. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The soldering connections of the MR30 contacts are designed for cables with a cross-section of up to approx. 0.8-1.0mm (AWG 18/17).

Connector Technical Specifications

Weights & Dimensions

Notice: Array to string conversion in /var/www/jperkins.com/public_html/releases/2026.05.13-0835.517/products/inc-prod-tab-desc.php on line 656
Shipping Weight0.00kg0.00lbs
ConnectorMPX
Age Recommendation14+
Colour Array
MaterialPlastic
