Discontinued
Multiplex

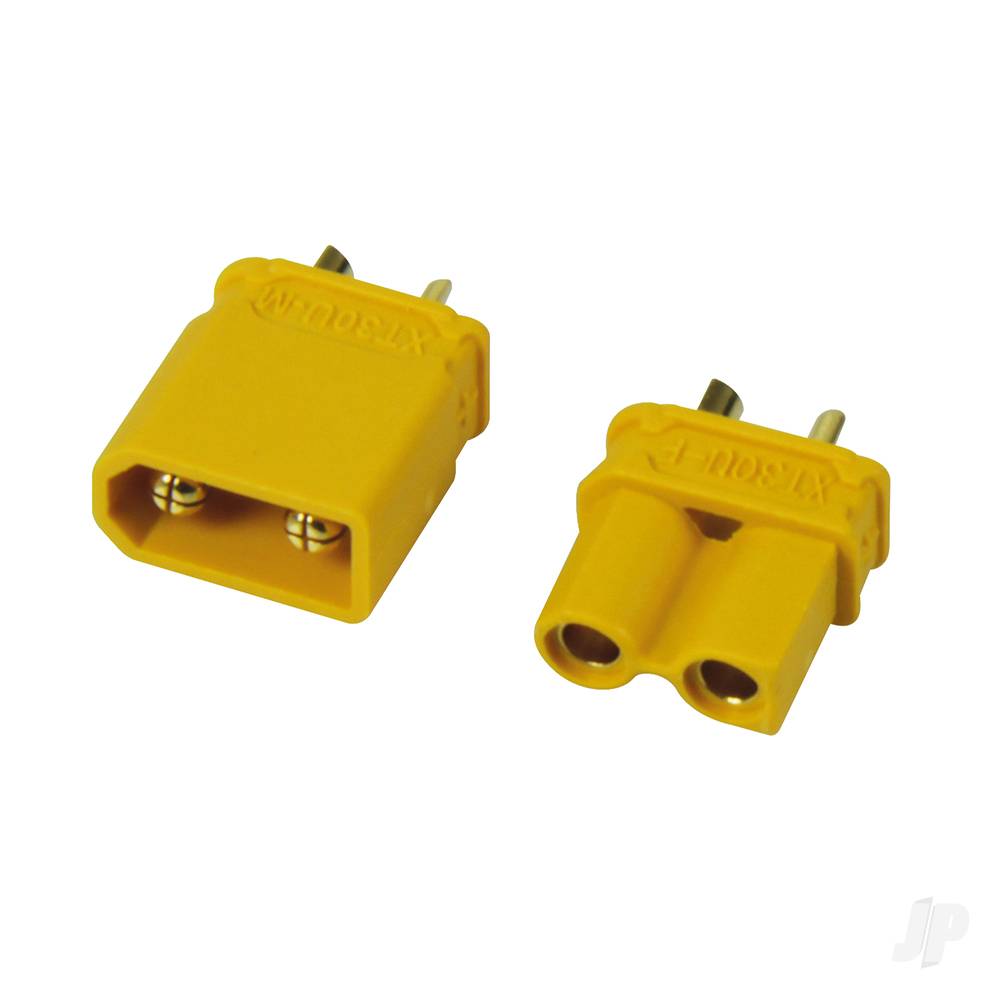

MPX-XT30 (5 pairs)
The MPX XT-30 plugs, with reverse polarity protection, are ideal for small drives or receiver power supplies. Made of fire-resistant polyamide, they feature gold-coated brass contacts, support 1.0mm cables, and handle 15A (30A short-term) at 500V DC.
The MPX XT-30 plugs, with reverse polarity protection, are ideal for small drives or receiver power supplies. Made of fire-resistant polyamide, they feature gold-coated brass contacts, support 1.0mm cables, and handle 15A (30A short-term) at 500V DC.
£ SRP
| SKU | Price SRP | |
|---|---|---|
| current | — |
Shop local
Your local shop can get this next day.
Details
#1-02288 MPX connector XT30 The MPX XT-30 plugs are constructed asymmetrically, which guarantees a high level of reverse polarity protection. They are suitable for small drives or in the receiver power supply. The housing made of temperature-resistant polyamide is classified according to fire class UL94 V0. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The soldering connections of the XT30 contacts are designed for cables with a cross-section of up to approx. 0.8-1.0mm (AWG 18/17).
No description available for this product.
Specifications
- Brand
- Family
- SKU
