Futaba T10XCR 10-Channel Surface Radio with R404SBS-E Rx

Key Features

• 10 channels (F-4G system).
• 40 model memories.
• F-4G, S-FHSS, T-FHSS, T-FHSS SR & Mini-Z protocols.
• Full colour 4.3 inch HVGA transflective LCD.
• Telemetry (temp / RPM / volts / amps / GPS).
• Acceleration (preset throttle jump).
• Steering mix (twin servo).
• Brake mix (independent adjustment of front & rear).
• Gyro mix (remote gain adjustment).
• 4WS mix (tuning of front and rear steering).
• Dual ESC mixing (control of front & rear motors).
• CPS mixing (Channel Power Switch control).
• Winch mix (winch control via trim).
• Tank / track mix (throttle & steering).
• Tilt mix (for yachts and powerboats).
• Program mixing (5 available).
• Condition programming (setting & switching parameters).
• Exponential (steering, throttle & brake).
• Response adjustment (15 point throttle & steering scale).
• Steering speed (adjustment of steering servo).
• Throttle speed (adjustment of throttle servo).
• Servo response (to adjust over sensitivity).
• Traction control (prevents wheel spin).
• A.B.S. (prevents skidding during braking).
• Engine cut (switch assigned).
• Drag racing (switch controlled trans brake).
• Idle-up (reliable idling or unintentional braking).
• Timers (x4 - up, fuel down, lap & lap navigate).
• Lap list (lap time memory / recall).
• S.Bus servo (parameter setting).
• MC link (facilitates ESC programming).
• Gyro link (wireless parameter setting).
• Warning alarms (various).
• Vibration alerts (numerous).
• Intuitive programming interface.
• MicroSD card (software updates & storage of data).

What's in the Box

• 1x T10XCR 10-channel transmitter.
• 1x R404SBS-E receiver.
• 1x Dry battery holder.
• 1x Receiver connector dust cover set.
• 1x Short manual.

Product Description

Hardened stick radio drivers will adore Futaba's T10XCR for this is a truly top-tier surface radio that's engineered for performance yet offers complete customisation. Designed for the discerning racer, the 10XCR fuses cutting-edge technology with Futaba's renowned reliability, delivering unrivalled precision for competitive R/C driving.

Powered by Futaba’s ultra-fast 4th generation F-4G telemetry system, the XCR offers lightning-fast response and near-zero latency – giving you a critical edge on the track. Meanwhile, its 10-channel capability is paired with an impressive 40 model memory, allowing you to manage all the vehicles you need with total ease, from 1/8 nitro buggies to electric touring cars, trucks, tanks and and everything in between. But, of course, there's more. Boasting 4.3 inches of vibrant full-colour the transflective touchscreen delivers an intuitive and highly responsive interface, giving you full control over advanced settings such as throttle curves, dual rates and telemetry readouts. Among its standout features are dedicated truck and track mix menus, designed specifically for managing multi-axle trucks or dual-motor crawlers, as well as fine-tuning of traction and balance over different surfaces – ideal for competitive off-roaders who demand adaptability across disciplines.

Ergonomically refined, the T10XCR features precision ceramic stick bearings and offers adjustable stick mounting angles, throttle stick stroke adjustment, plus tension (including brake) and neutral adjustment, ensuring a perfectly tailored feel in hand. Bluetooth and USB connectivity, voice feedback and vibration alerts further enhance its capabilities making this radio as smart as it is powerful. But that's not all, a new steering trim function memorises steering trim settings and allows you toggle between them to counter tyre wear during a long race. With its advanced features, extensive model capacity and tailored control options, the Futaba 10XCR isn't just a transmitter, it's an essential piece of tech that's built specifically to raise your game.

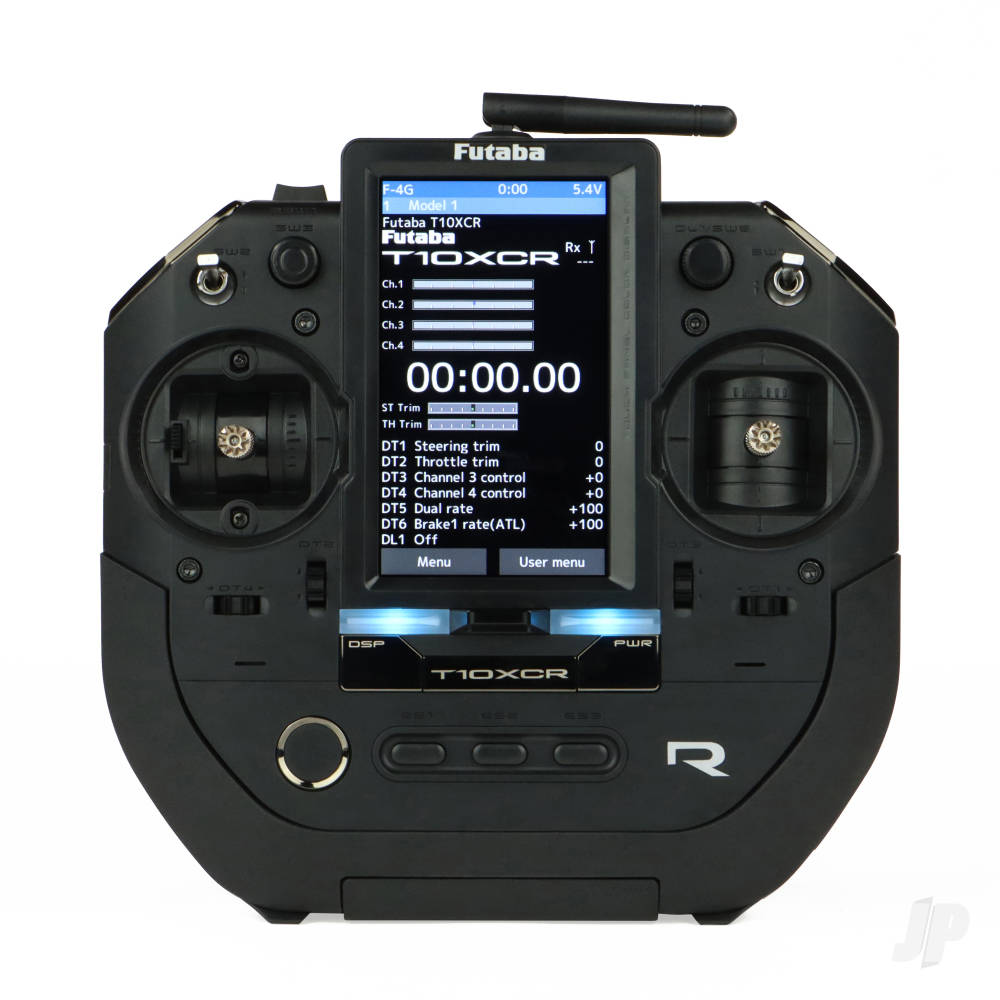

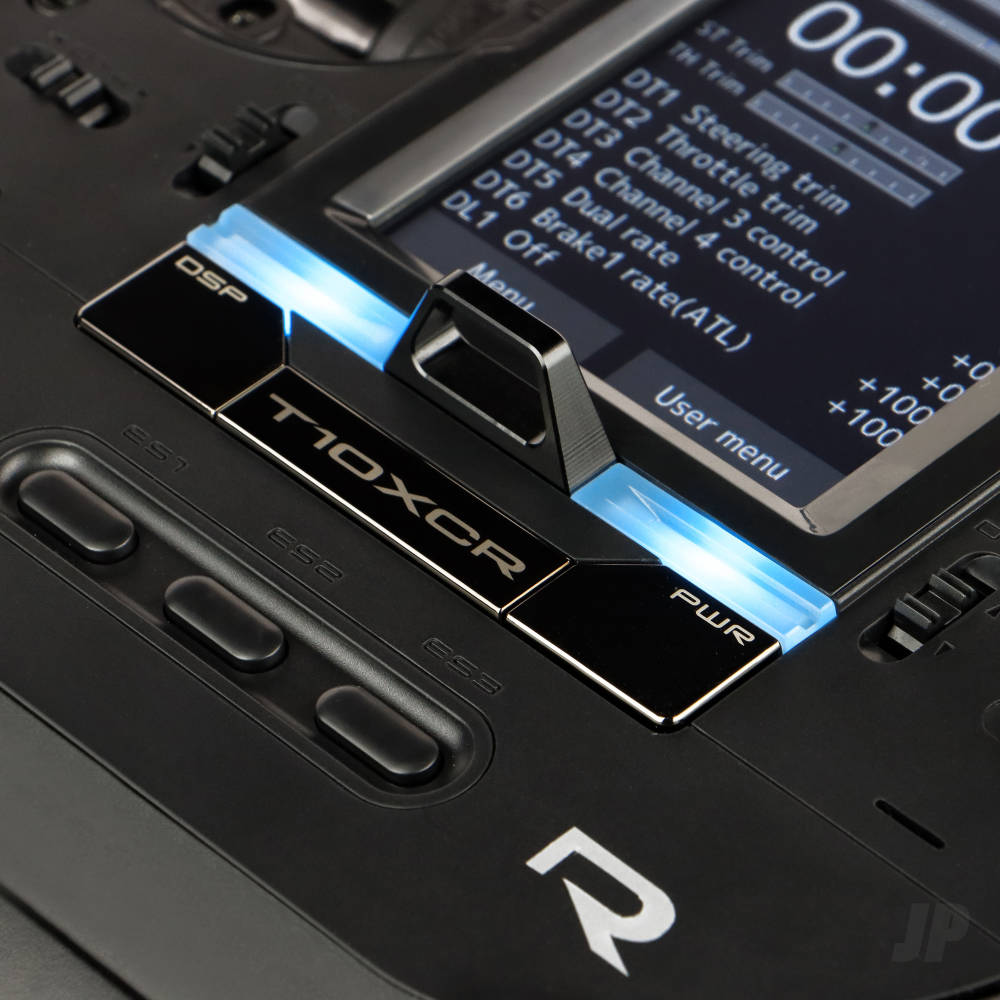

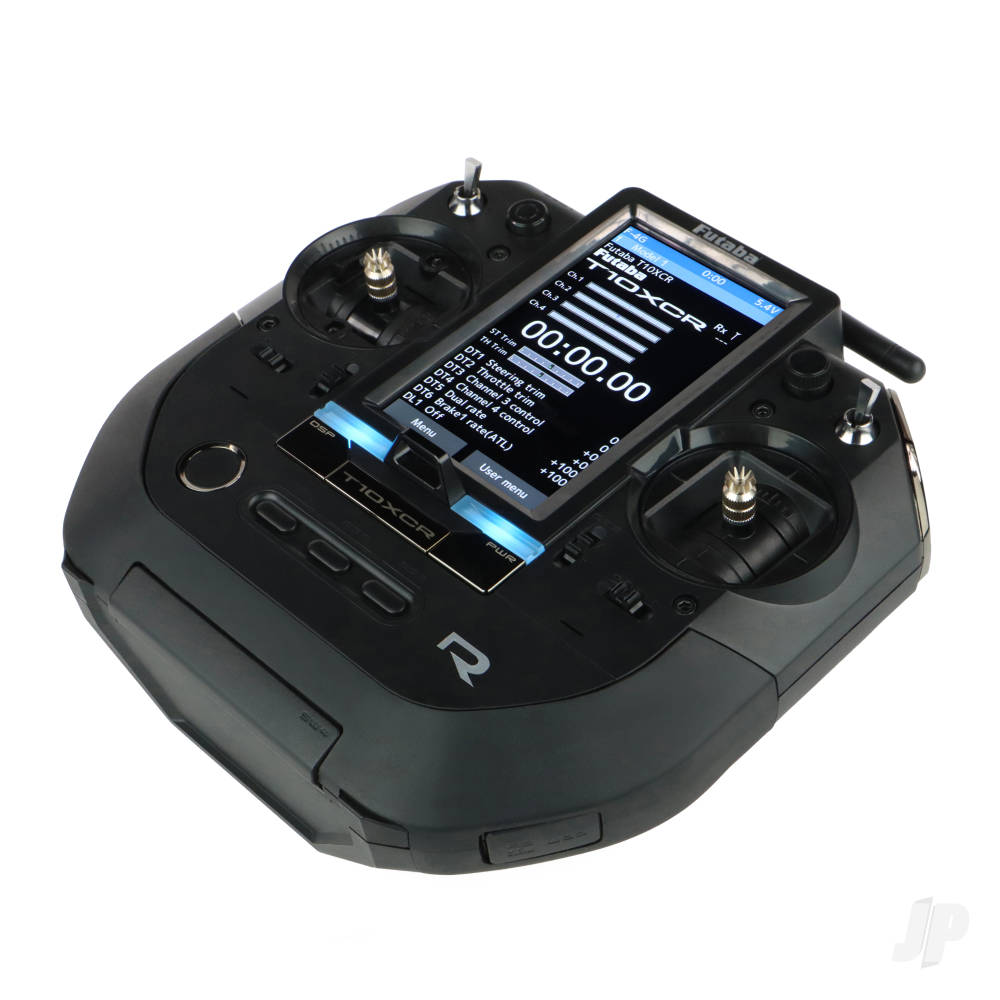

Full colour touch screen
The T10XCR has an HVGA 4.3 inch transflective screen, which enables both indoor and outdoor visibility.

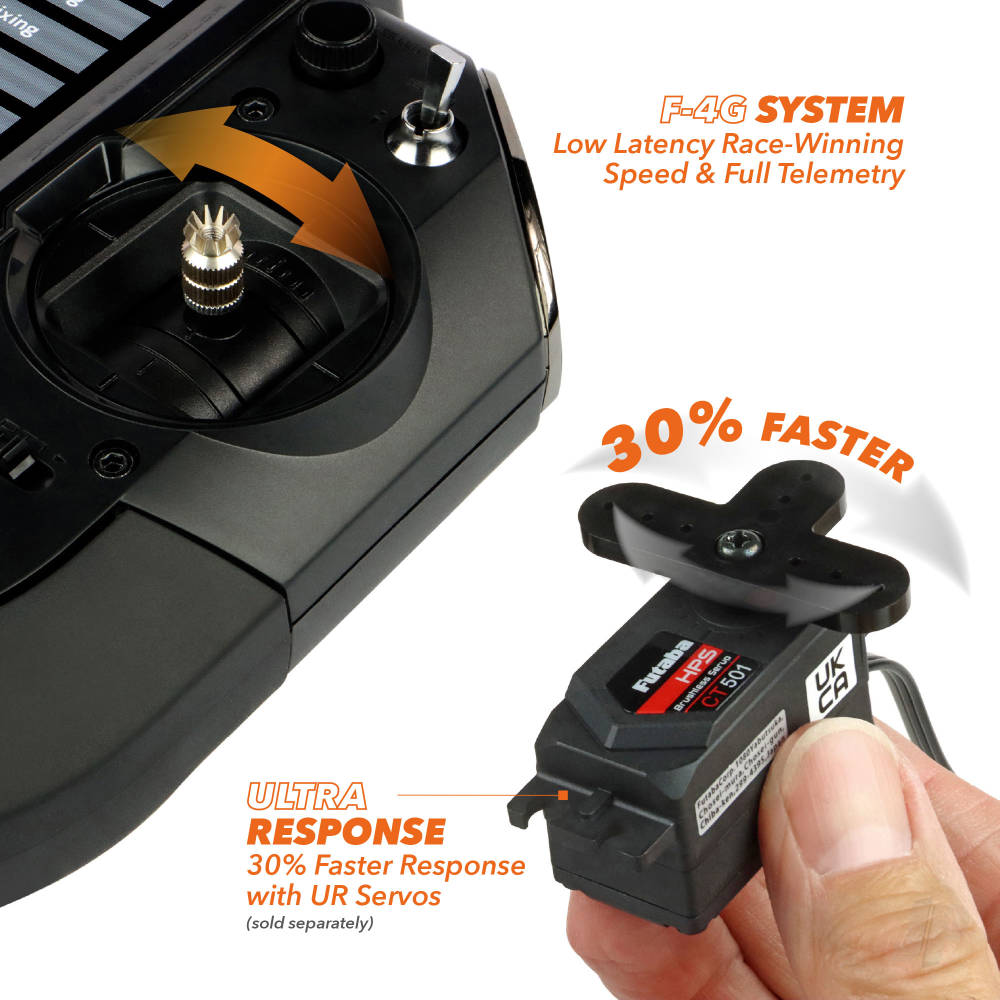

F-4G system and telemetry
The F-4G system enables 30% faster response with UR servos.

10 channels
Enjoy full control with 10 channel availability.

T-FHSS Mini-Z system
By setting the Mini-Z system you can pair with the Kyosho Mini-Z Evo dedicated receiver RA-42.

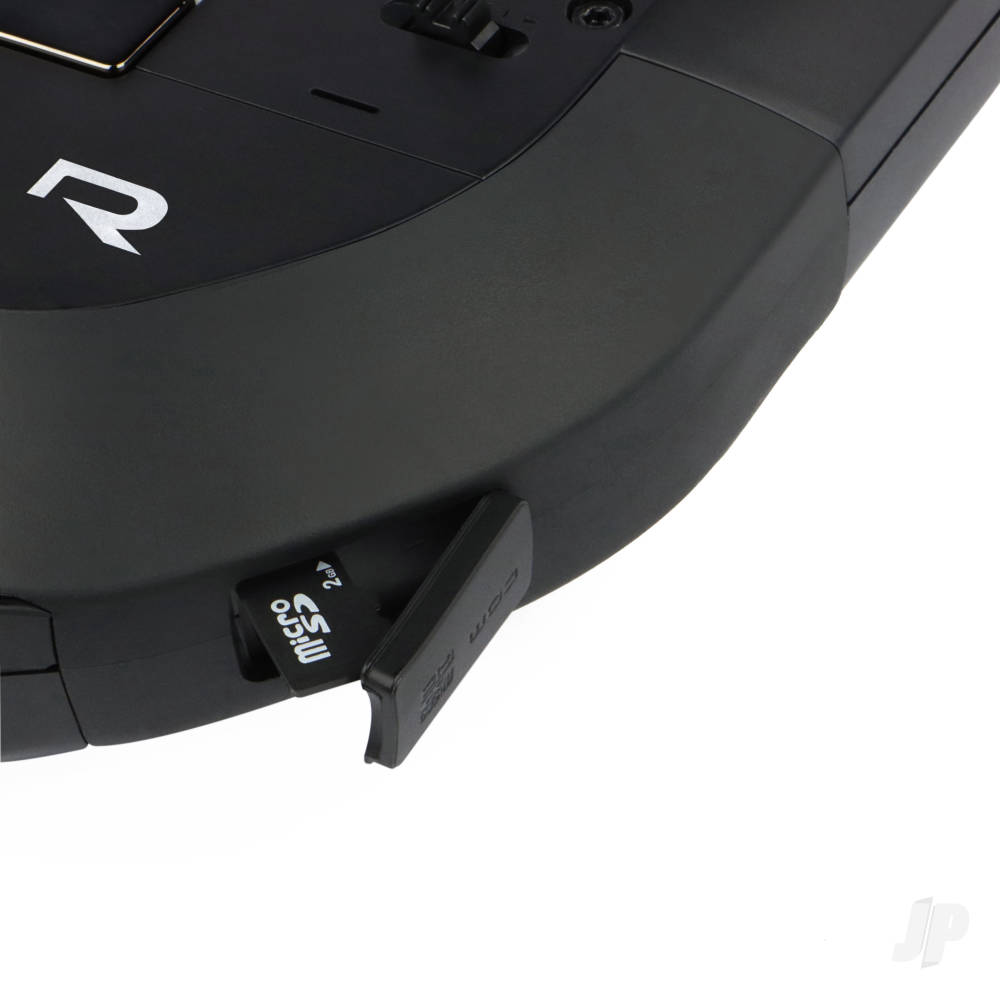

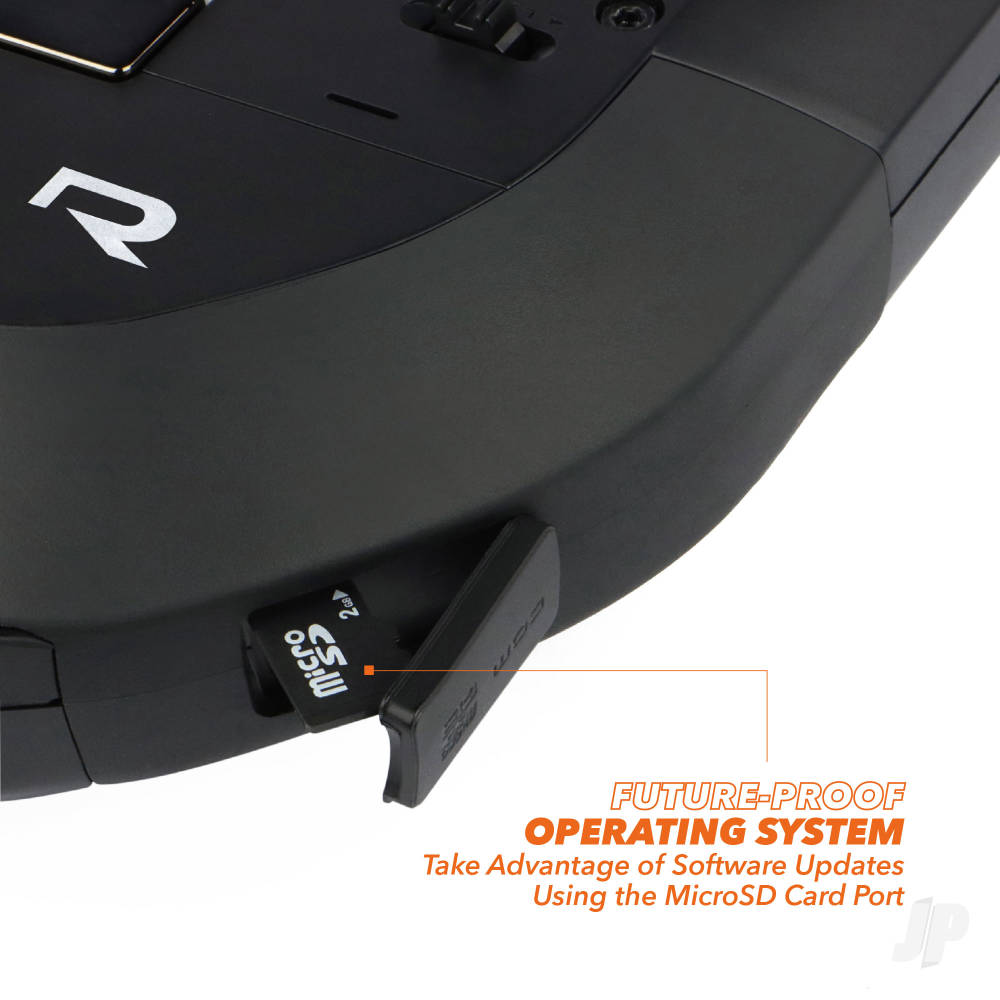

Updateable software
Software can be updated by microSD card. Model data and telemetry data can also be saved on a microSD card.

40 model memory
Model names can use up to 15 letters, number and symbols.

Response adjustment (feeling)
Smooth out the steering and throttle response using a 15-point scale.

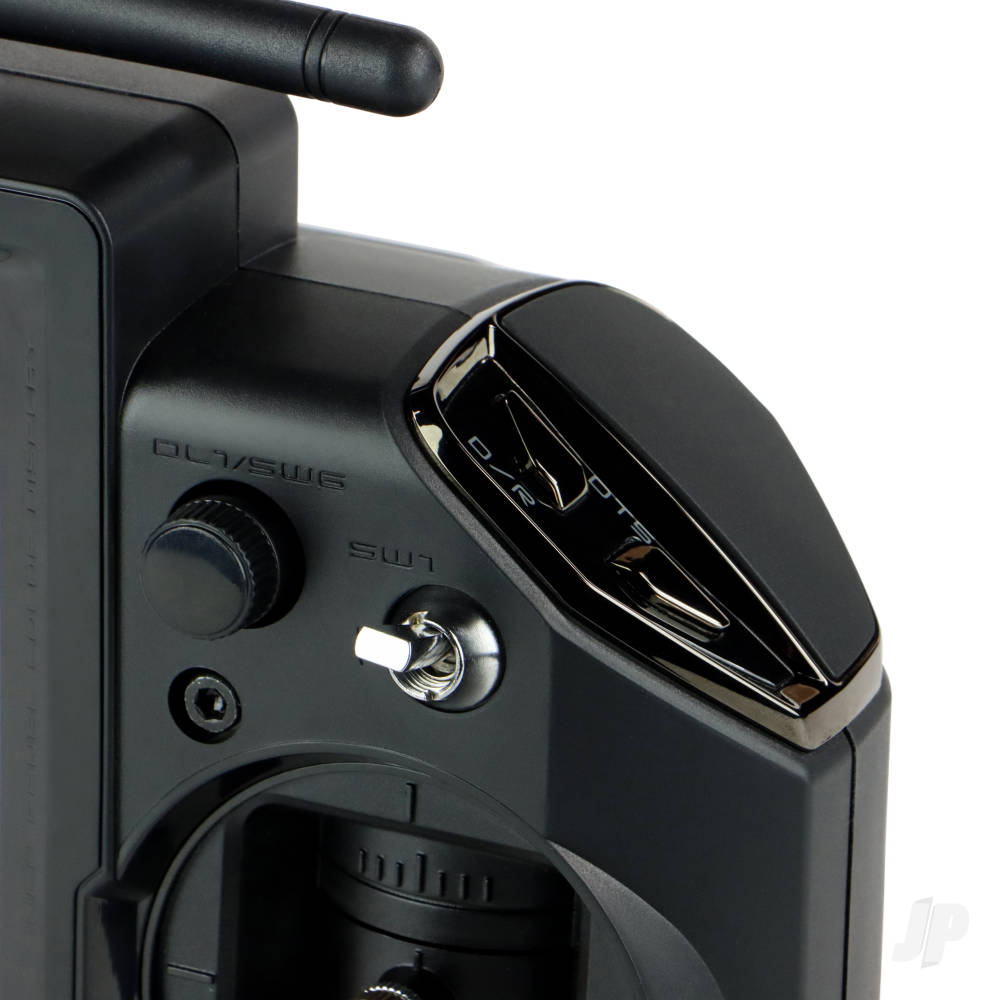

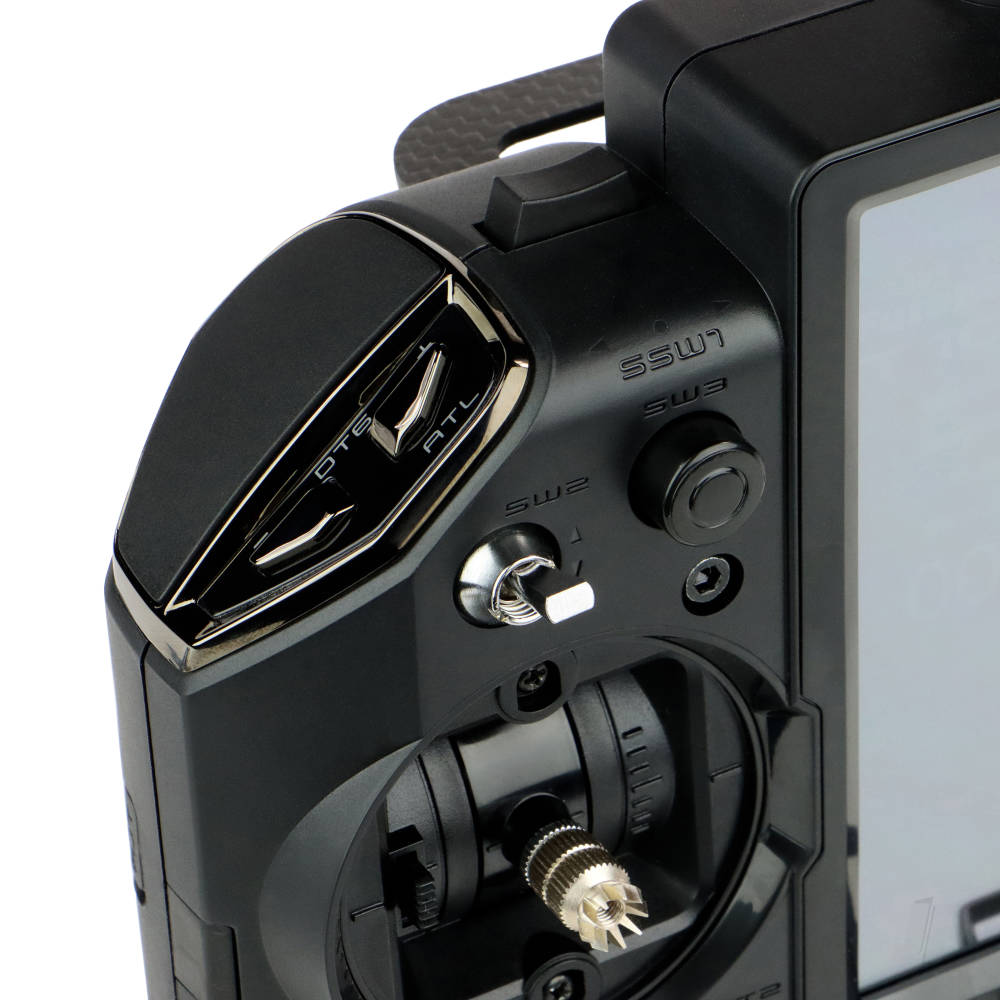

Switch availability
Assign functions to 7 switches and alter the operating direction. New independent rear press button switches.

LiPo battery option
For extended running times the optional LT2F2000B LiPo battery can be used as the transmitter's power supply.

Brake mixing
Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently.

Steer mixing
Smoother cornering can be achieved using the independent left and right steering servo setting.

4WS mixing
For use with crawlers and other 4-wheel steering type vehicles.

Dual ESC mixing for crawlers
ESCs at the front and rear can be controlled independently.

Gyro mixing
The sensitivity of Futaba car rate gyros can be adjusted from the T10XCR.

Tank mixing
For tanks, excavators and all tracked vehicles.

CPS mixing
LED lighting / flashing control can be matched to steering and throttle operation.

S.BUS servo
A handy function that allows the setting of S.Bus servo parameters.

MC-Link
A dedicated function allowing Futaba speed controller data changes to be made via a PC.

Throttle speed
Sudden trigger operation on a slippery road surface can cause tyres to spin. Setting the throttle speed allows the operation to be performed smoothly and easily.

Non-telemetry LED
Confirms when the telemetry function is OFF.

Dial select function
This assigns functions to dials. The step amount and operating direction can also be adjusted.

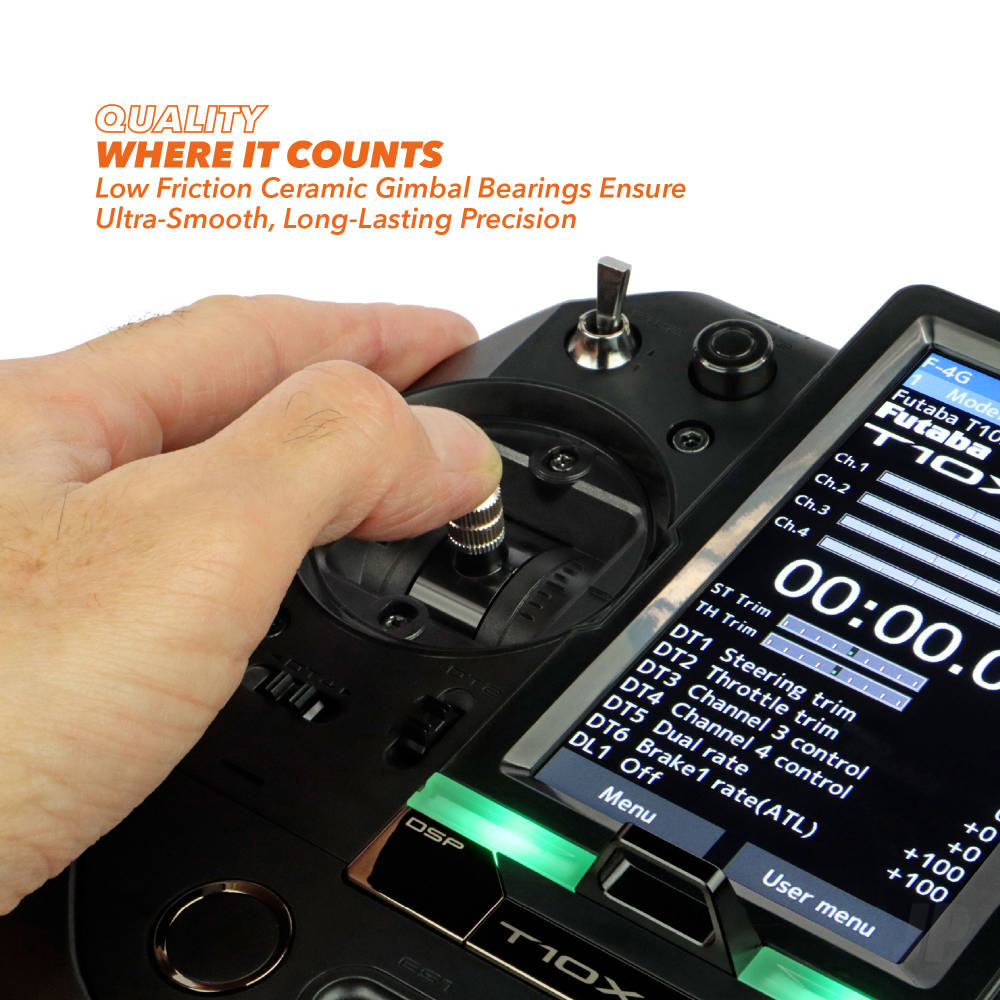

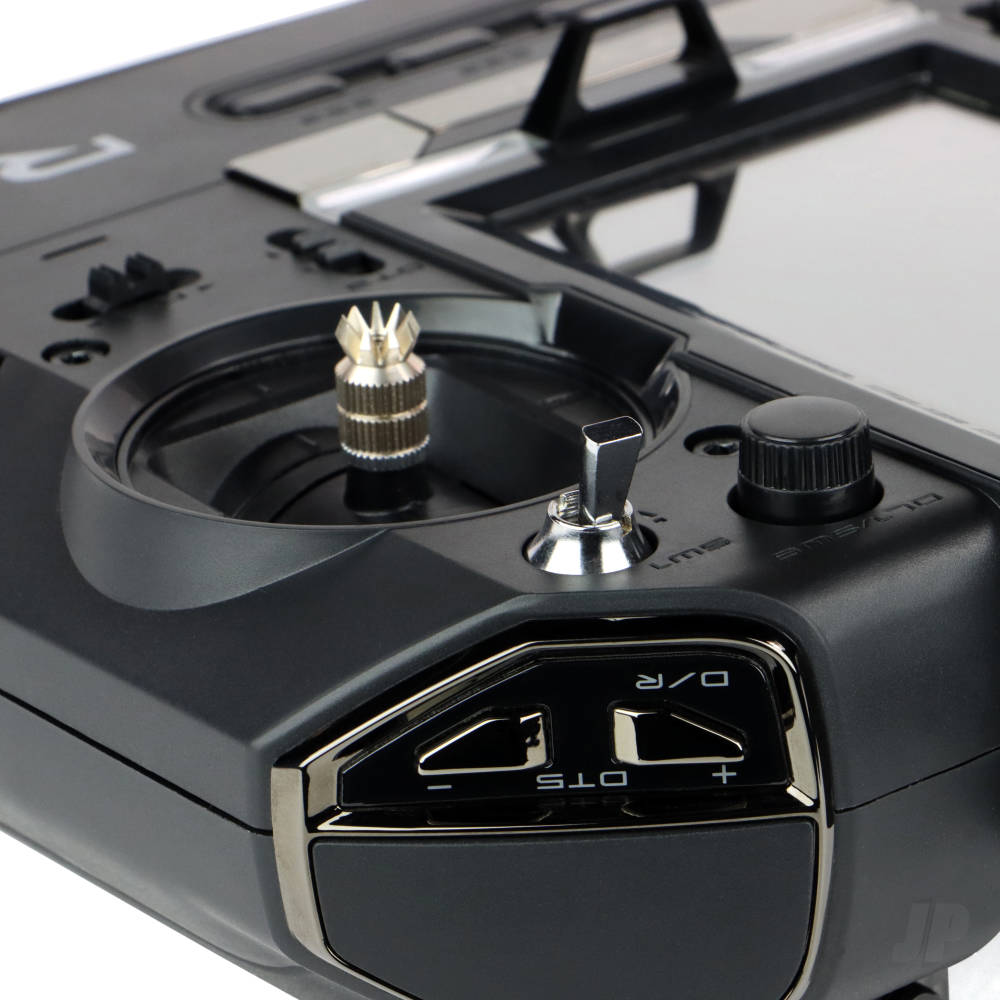

Stick adjustment
Adjustment of stick mounting angles, throttle stick stroke, tension (including brake) and neutral adjustment, ensure a perfectly tailored feel in hand.

Trim/dial lock functions
The lock functions prohibit the setting and operation of the transmitter trims and dials.

Steering trim memory
Memorises steering trim settings and allows you toggle between them to counter tyre wear during a long race.

Vibration warning
Vibration alert can be applied to the grip and linked to the the timer, battery level and a variety of other warnings.
