Key Features
- S-FHSS & T-FHSS protocols.
- 8 channels.
- 30 model memory.
- Backlit LCD with contrast adjust.
- 8-character model name.
- Built-in antenna.
- Aircraft, glider, helicopter & multirotor programming.
- Vibration alert.
- Telemetry system.
- Earphone jack.
- Software updatable via CIU-3 interface.
- Suits 4x AA dry cells or NiMH / LiFe packs.
- S.Bus / S.Bus2 servo setting via Tx.
- Trainer system.
- Throttle position warning.
- Free programmable mixers.
- 5 fixed-wing types.
- 2 fixed-wing tail types.
- 6 helicopter swash types.
- Supports 5 telemetry sensor types.

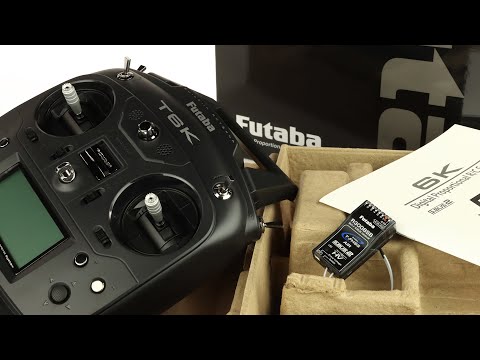

What's in the Box
- 1x T6K-V3S 8-channel transmitter.
- 1x R3008SB 8-ch S.Bus Rx.
- 1x Switch harness.
- 1x Screwdriver.
- 1x Short manual (full manual download).
Product Description
Don't be fooled by the name or the price, the T6K is, in fact, a very capable, telemetry and S.Bus enabled 8-channel, 30 model memory computer radio. Perfect for beginners, returning modellers or those who want a solid second radio as a back-up or rainy day set, this is a winner. With a full 8-channels and a powerful programming feature-set across all four aircraft types (fixed-wing power, gliders, helicopters and multirotors) it s perfect for any number of trainers, sport aerobats, gliders, helis, foamy warbirds, edf jets and much, much more. Designed to sit very comfortably in the hands and with ultra-intuitive programming, the T6K is a transmitter you'll immediately feel at home with and grow to love for its unpretentious functionality, bullet-proof radio link and sheer ease of use
S.BUS2 SYSTEM
Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.
TELEMETRY SYSTEM
The voltage of the on-board battery is displayed on screen during flight whilst altitude, temperature, RPM, current and voltage can also be displayed by installing optional telemetry sensors.
SPEECH
Voiced telemetry data can be heard by plugging commercial earphones into the transmitter.
SOFTWARE UPDATES
Software updates can be made using the CIU-3 USB interface (sold separately).
VIBRATION ALERT
The operator can be notified of selected warnings by vibrating the transmitter.
INTUITIVE PROGRAMMING
Model-specific programming and editing has never been easier.
S.BUS / S.BUS2 DEVICE SETTING
Servos or a telemetry sensor can be connected directly to the T6K where channel setting and other data can be entered for S.BUS / S.BUS2 servos or sensors.
DIGITAL TRIMS
Rapid trimming during flight is possible with an audible indication of the centre point. The step size can also be arbitrarily changed with trim position displayed on the LCD.
Key Programming Features
For full list see manual- Model name (8 characters)
- Sub trim
- Servo reverse
- Fail-safe
- Exponential
- Throttle cut
- End point / ATV (30 - 140%)
- Trainer function
- Idle down
- Servo monitor
- Trim setting
- AUX channel
- Programmable mixers
- Pre-programmed mixers
- Elevator to flap
- Flap to elevator
- Elevon
- Aileron differential
- Air brake
- Motor switch
- Butterfly
- Camber mix
- Elevator to camber
- Aileron to camber
- V-tail
- Twin timers
- Stick alarm
- Gyro sensor
- AFR (dual rate)
- Acceleration mixing
- Swash mixing
- Governor gain
- Pitch curve
- Throttle curve
- Revolution mixing
- Throttle hold
- Hover throttle
- Hover pitch
- Throttle cut
- Trim offset
- Swash setting
- Swash AFR
- Delay
Telemetry functions- Temperature
- RPM
- Altitude
- Voltage
- Receiver battery
- Current
- Capacity
Transmitter Technical Specifications
Weights & Dimensions
Shipping Weight | 1.14kg | 2.50lbs |
Age Recommendation | 14+ | |
---|
Channels | 8 | |
---|
Radio Protocol | T-FHSS [Air], S-FHSS [Air] | |
---|
Model Memory | 30 | |
---|
Colour | Black | |
