APC Folding Electric Hub (For 45mm Spinner)

APC Folding Electric Hub (For 45mm Spinner)

£5.75


SKU: APCLPFH4
Brand: APC
Release Date: Dec 15, 2008
Key Features
  • Hub adds 50mm to prop diameter.
  • To Fit Motor Shaft Size - 3.2 to 9.5mm
Product Description

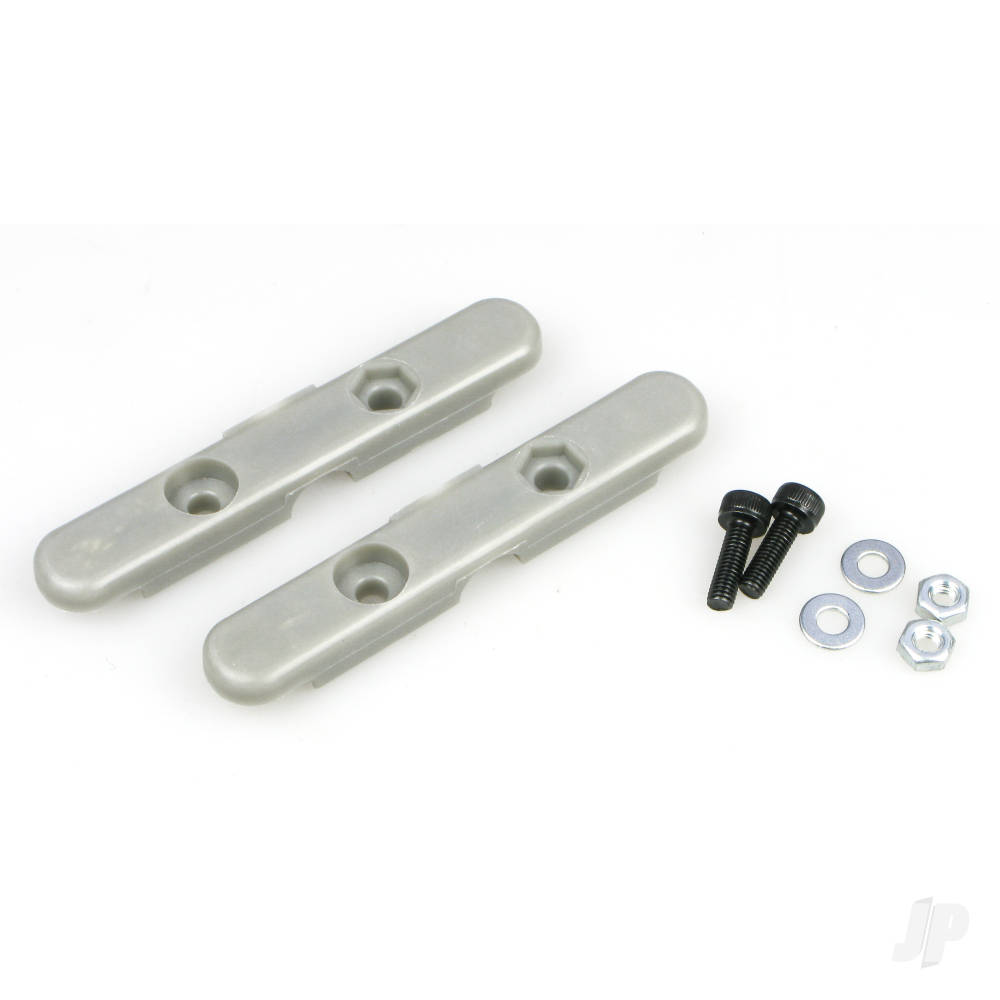

50mm Folding Electric Hub for 45mm Spinner
APC Folding Propeller Hub 50mm LPFH4
Two-piece, gray composite propeller hub that goes on each side of the APC folding propeller blades to hold them in place.
(blades are not included)
The 50mm Folding Propeller Hub can be used with a 45mm spinner or similar.
Electric powered aircraft only (not for gas engines).
Hub has molded nut insets for easy tightening and includes hardware.
Overall Length: 63mm
Length between Blade Mounting Centers: 50mm
Inner Mounting Diameter: 8mm ID with 30 deg. taper for collets

Use LPAR18SF or LPARM12SF adapter rings for centering on smaller motor shafts (not included)

Hub Technical Specifications

Weights & Dimensions
Weight11.056g0.39oz
Shipping Weight0.01kg0.02lbs
ColourGrey
